HUAKAI Zipper Torque Tester Bidirectional Torsion Pull Tab Resistance for Test Equipment Luggage Garment Zipper Quality Control

Name: HUAKAI Zipper Torque Tester Bidirectional Torsion Pull Tab Resistance for Test Equipment Luggage Garment Zipper Quality Control
Brand: HUAKAI
Price: 1 USD

Buy cheap HUAKAI Zipper Torque Tester Bidirectional Torsion Pull Tab Resistance for Test Equipment Luggage Garment Zipper Quality Control product

Frequency : 50HZ

Accuracy Class : High Accuracy

Brand Name : HUAKAI

Dimension : 550*300*500mm

customized support : OEM, OBM

Voltage : 220 V

Application : Deformation Testing, Tensile Testing, Torsion Testing

Protection Class : IP65

Accuracy : Torsion speed: 1~1.5 r/min

Price : $1,700-3,000 / piece

Place of Origin : Guangdong, China

warranty : 1 Year

MOQ : 1 piece

power : 200W

Type : Testing Machine

Weight : 25kg

Contact Now

Product Overview

HUAKAI Zipper Torque Tester Bidirectional Torsion Pull Tab Resistance for Test Equipment Luggage Garment Zipper Quality Control

The Zipper Puller Torque Testing Machine is designed to test the torque resistance of zipper pullers for metal, plastic, and nylon zippers. It uses a high-precision torque sensor and microcomputer measuring system to automatically track torque values and record peak values. This equipment helps manufacturers evaluate zipper quality and ensure compliance with international standards, improving the durability and reliability of zippers used in garments, luggage, and accessories.
Functions & Application Areas
Functions:

* Measures torque resistance of zipper pullers.
* Automatic tracking and peak value recording for accurate results.
* Supports both clockwise and counterclockwise torque testing.
Applications:

* Garment manufacturing quality inspection.
* Luggage and bag production quality control.
* Accessory and zipper component testing laboratories.
* Research and development of zipper materials.

Product Paramenters

Item	Specification
Control Method	PLC touchscreen control with user-friendly interface
Torque Measurement Range	0.1 – 5 N·m
Load Accuracy	≤ ±1% F·S
Twisting Speed	1 – 1.5 r/min
Loading Method	Unidirectional torque: * Clockwise loading * Counterclockwise unloading
Twist Angle Range	0 – 300°
Standard Configuration	One set of clamps and one torque testing unit
Power Supply	AC 220V, 25W, 50Hz (or customized)
Dimensions (L × W × H)	550 × 300 × 500 mm
Weight	Approx. 25 kg

Products Description

Structure & System Configuration

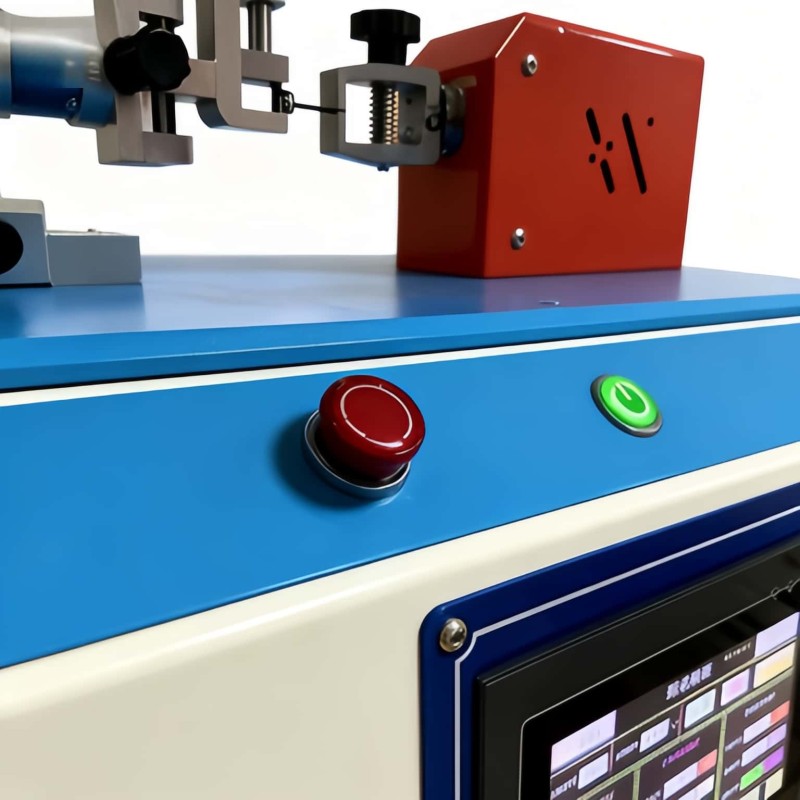

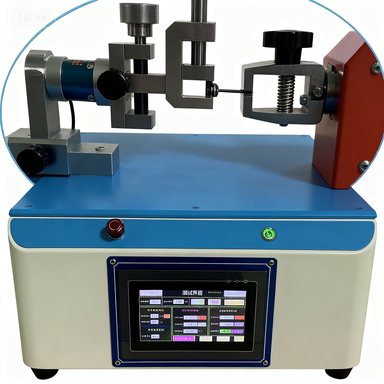

The HK-541 features a durable, compact structure with a high-precision torque sensor and intelligent control system. Its PLC touchscreen interface makes it easy to operate, while its automatic data tracking and recording ensure accurate and reliable test results. It is ideal for production environments and laboratory quality testing.
Applicable Standards
* QB/T2171-2014
* QB/T2172-2014
* QB/T2173-2014

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
