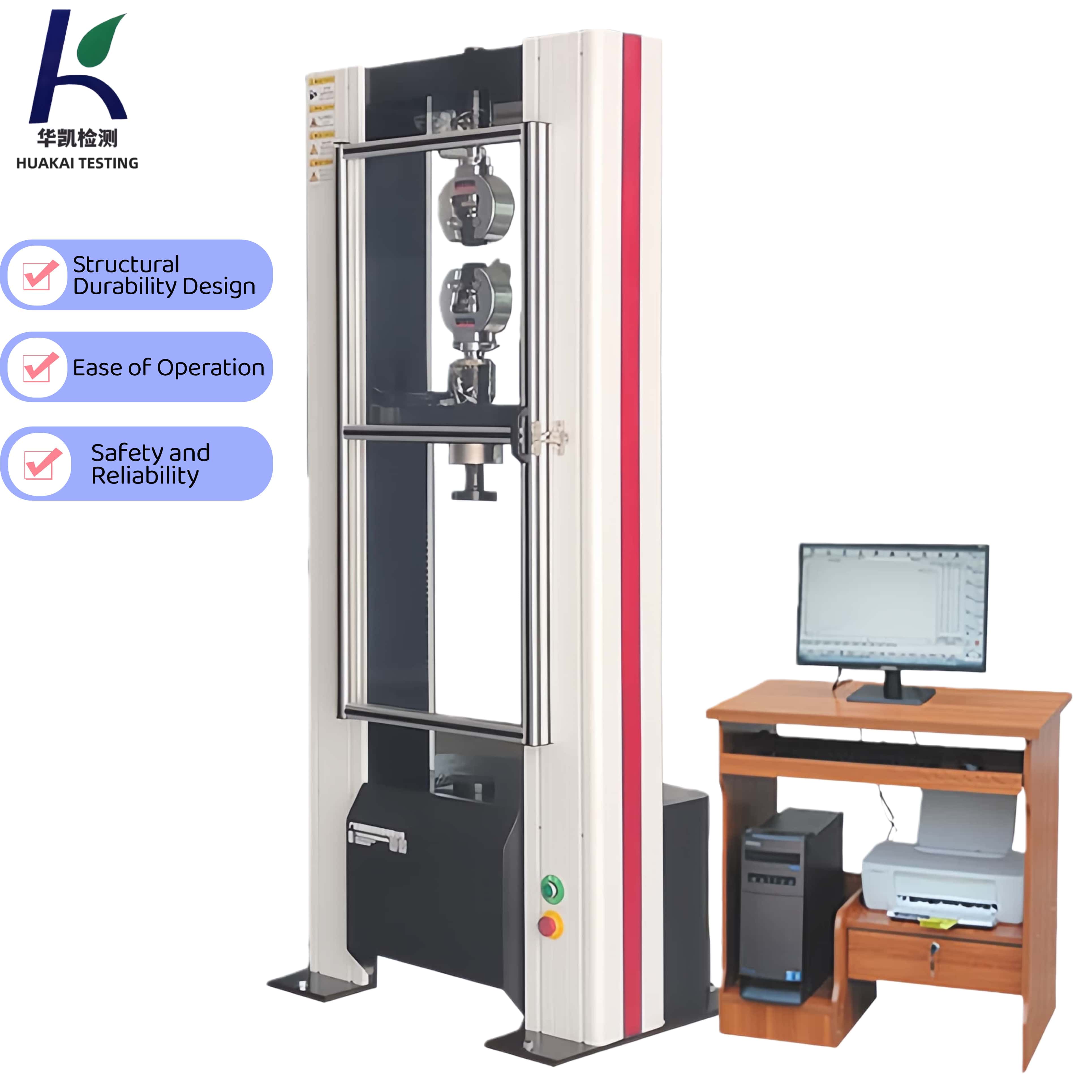

High-Strength Mechanical Tensile, Compression and Tearing Testing Machine Large Mechanical Tensile Testing Machine

The Servo Double Column Universal Testing Machine is designed for testing the tensile strength, compressive strength, and elongation of various materials, semi-finished, and finished products. It can perform peel, tear, bending, folding, compression, and other mechanical tests. This equipment is widely used in metals, plastics, rubber, textiles, synthetic chemical products, wires & cables, leather, and other industries. With high precision servo control, stable dual-column structure, and advanced PC software, it ensures accurate and reliable test results for industrial and laboratory applications.

• High Load Capacity: 0–2000 kg (customizable based on user requirements).
• Wide Test Range: Suitable for tensile, compression, bending, tear, peel, and other mechanical tests.
• Precision Measurement: Load resolution 1/250,000; load accuracy ≤0.25% FS.
• Advanced Drive System: Servo motor + servo driver + Taiwan TPI backlash-free ball screw + Limming reducer + synchronous belt.
• Flexible Control: TM2101 PC servo control system, automatic return to zero, data storage (auto/manual).
• Software Versatility: Multi-language interface, customizable reports, multiple control modes.
• Safety Protection: Overload emergency stop, travel limit, leakage breaker, automatic stop at break point.

• Drive System: Servo motor, servo driver, precision ball screw, Limming reducer, synchronous belt.
• Control System: TM2101 PC servo system with automatic return and data storage.
• Data Transmission: RS232 interface.
• Display: Windows interface.
• Calibration: Single-range and six-range linear dual calibration.
• Control Modes: Constant speed, constant displacement, constant load, constant force, constant time, break-point ratio, multi-step programming.
• Encoder: 2500 P/R, quadruple resolution enhancement.
• Displacement Resolution: 0.001 mm.
• Safety: Overload emergency stop, travel limit, leakage breaker, auto stop on break point.

• Standard Modules: Supports GB, ASTM, DIN, JIS, BS, and other test standards.
• Specimen Data: Gauge length, width, thickness, radius, area input & storage.
• Report Editing: Fully open report editor; supports preferred formats.
• Dynamic Unit Conversion: Length & force units switchable (mm, cm, inch; g, kg, N, kN, lb).
• Real-Time Curves: Force–Displacement, Force–Time, Displacement–Time, Stress–Strain with dynamic switching.
• Automatic Results: Max force, yield strength (upper/lower), tensile strength, compression strength, modulus, elongation, peel strength statistics.
• Multi-language Support: Simplified Chinese, Traditional Chinese, English.

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit.
• Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification.
• Loading: All packages are reinforced and suitable for forklift handling and container loading.
• Shipping Options: By sea, air, or express courier according to customer preference
