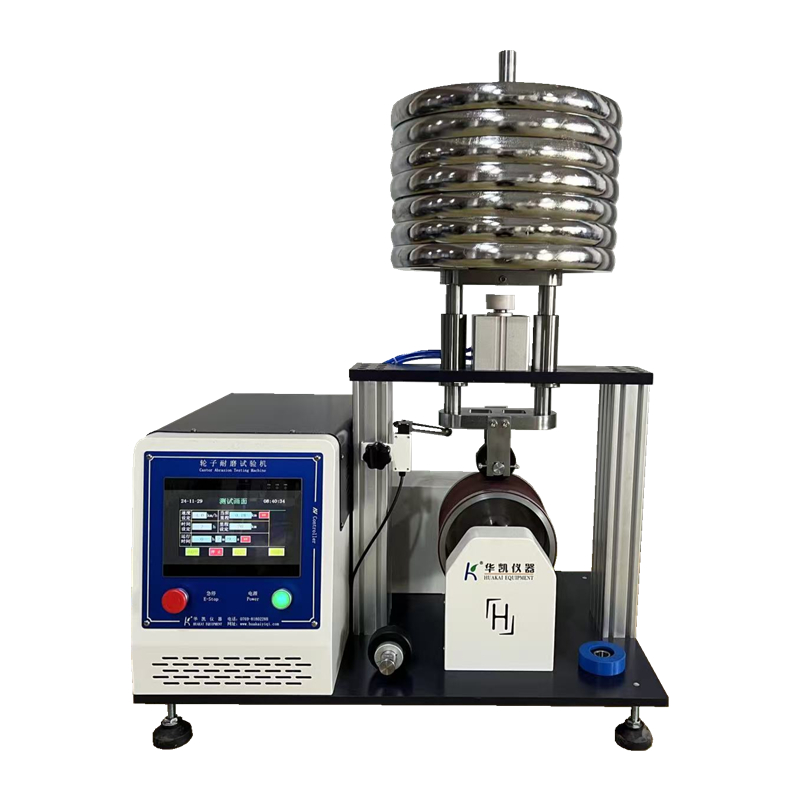

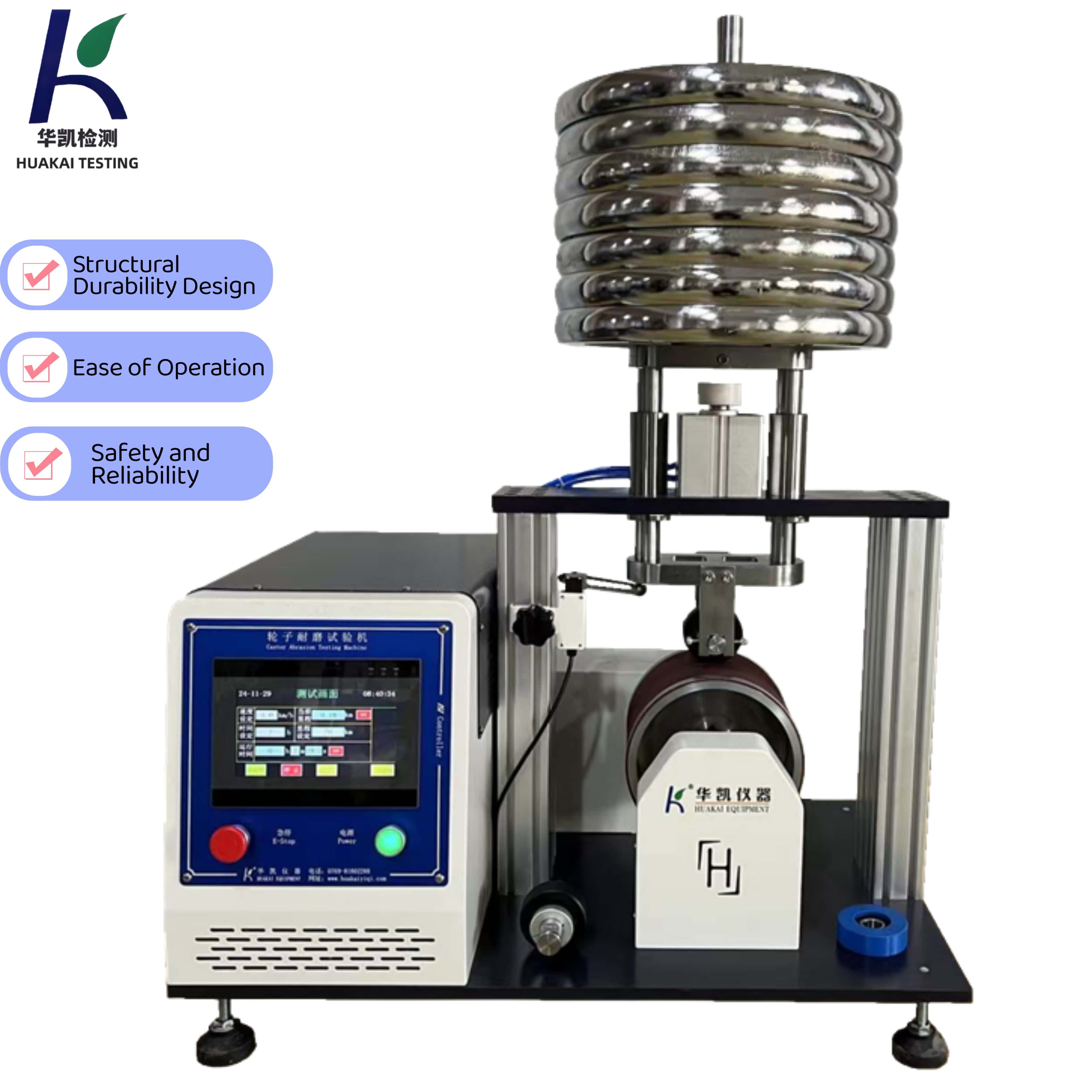

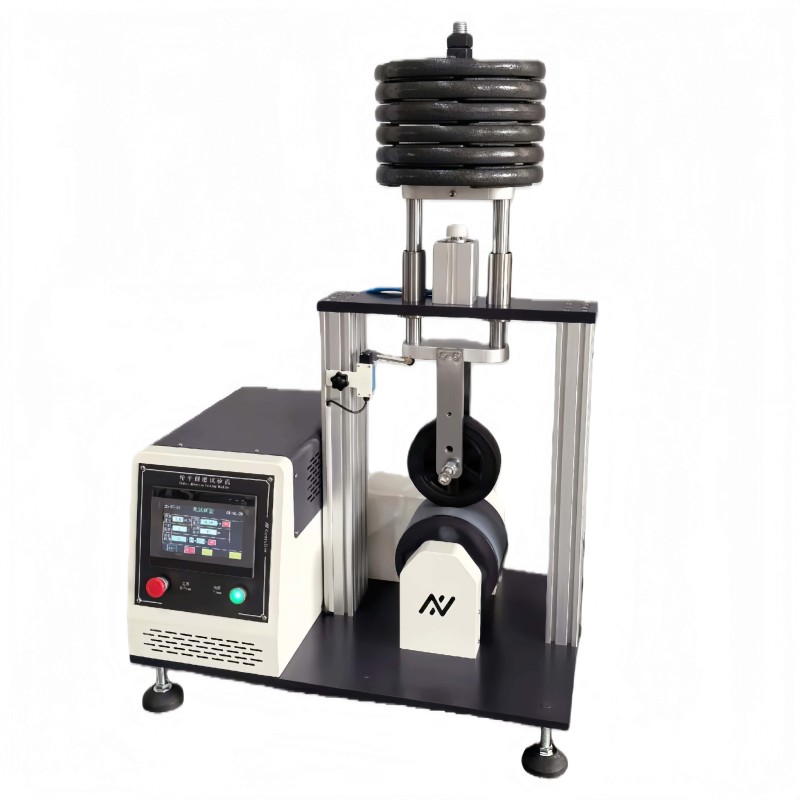

The Wheel Abrasion Testing Machine is designed for testing the abrasion resistance of small wheels such as luggage wheels, roller skate wheels, baby stroller wheels, and trolley wheels. It evaluates the wear resistance of wheel materials as well as the deformation or structural damage of the wheel assembly. Test results provide reliable references for R&D improvement, quality inspection, and product certification. Equipped with the latest touch-screen control system, the tester allows users to set test time, speed, distance, and automatic intermittent operation. Its user-friendly interface ensures easy and efficient operation, strictly designed in accordance with international and Chinese standards.
* Simulates real-life rolling and friction conditions for small wheels.
* Measures wheel material abrasion, wear, and deformation under different loads.
* Suitable for luggage industry, sports equipment (roller skates), baby strollers, and carts.
* Widely applied in R&D, quality control, and performance verification laboratories.
* Control System: Advanced touch-screen interface for time, speed, distance, and intermittent settings.
* Load System: Adjustable load weights (10kg, 11kg, 12kg) for flexible testing requirements.
* Transmission: Stable motor-driven test wheel simulating abrasion conditions.
* Frame: Durable steel structure ensuring stability during continuous testing.
QB/T2917-2007 - Test method for luggage hardware fitting wheel abrasion
